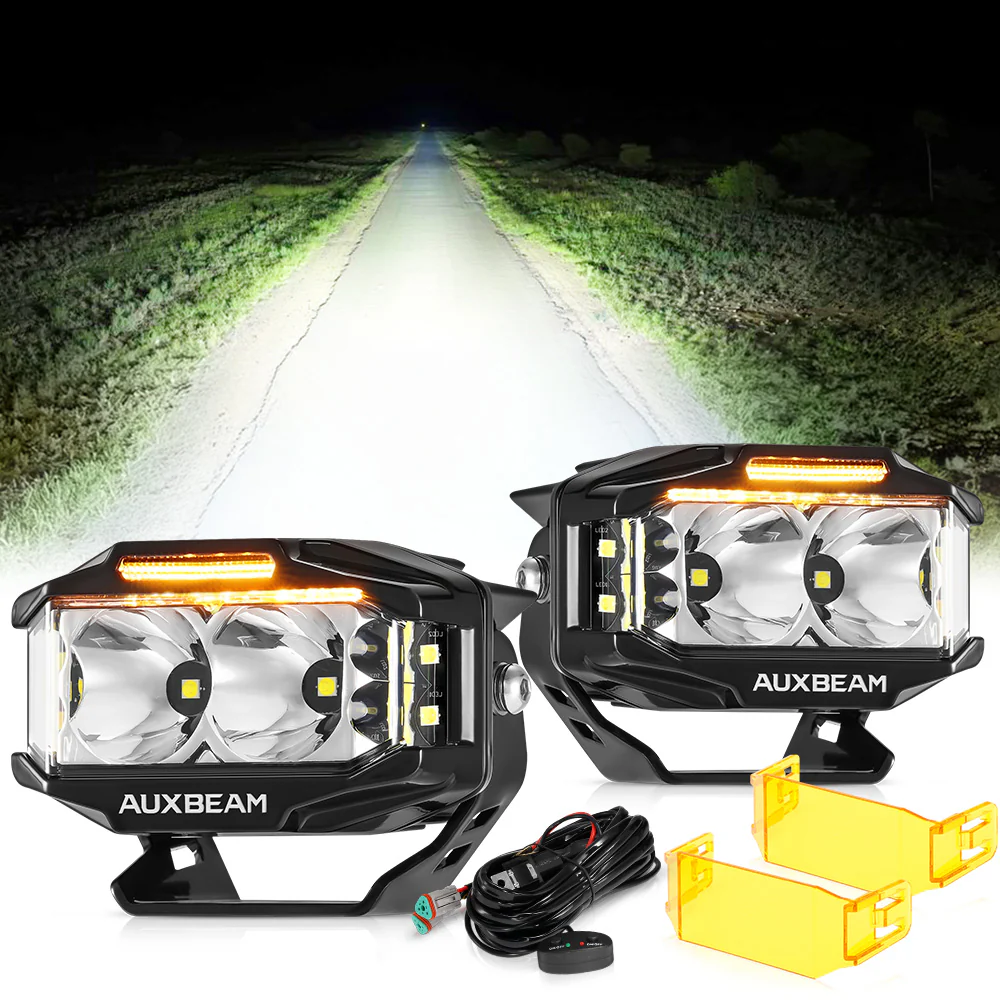

Auxbeam V-Max 4inch Side Shooter LED Pod Lights – White & Amber DRL
Engineered for wider visibility and safer driving, these Side Shooter LED Pod Lights combine a powerful front spot beam, dual side illumination, and amber DRL to maximize visibility in all conditions.
Features

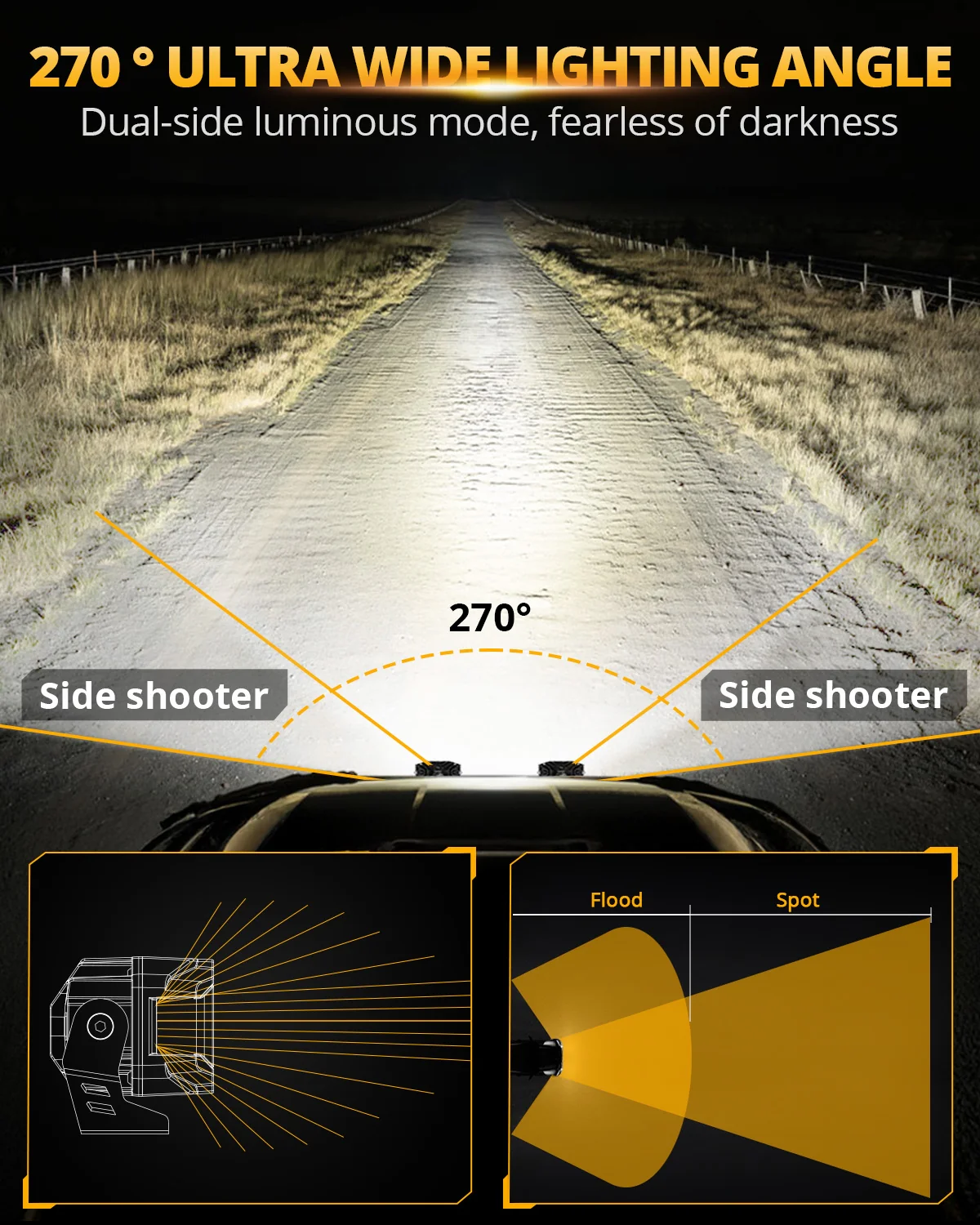

Side Shooter Wide-Angle Design
Equipped with dual side shooter LEDs working together with the front spot beam to expand illumination coverage, helping reveal road edges, obstacles, and potential hazards for improved driving safety.

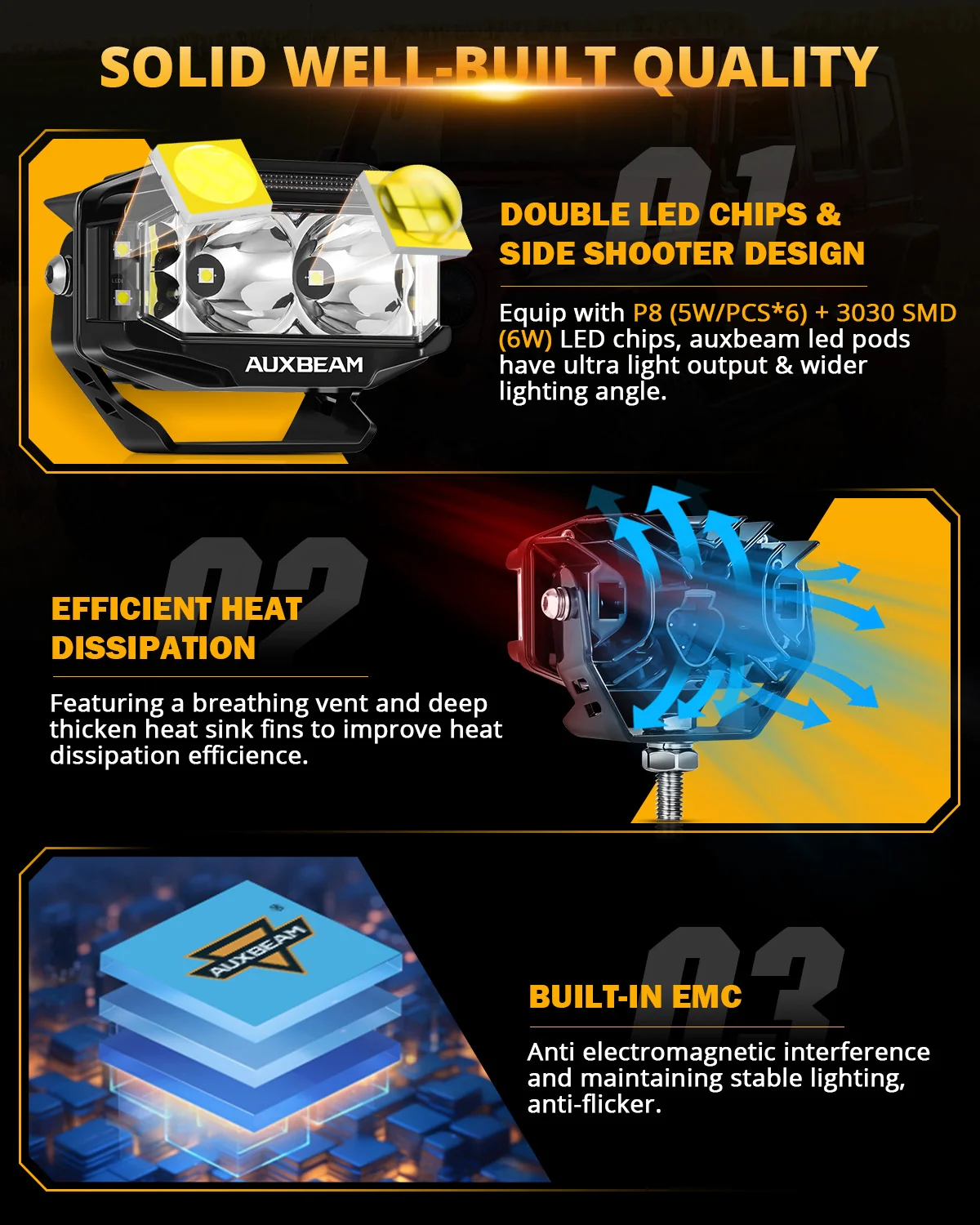

Reliable High Brightness
Powered by premium LED chips with 36W output per light and 3,480 lumens each, delivering brighter, clearer, and longer-range visibility. Built for performance with a lifespan exceeding 50,000 hours.

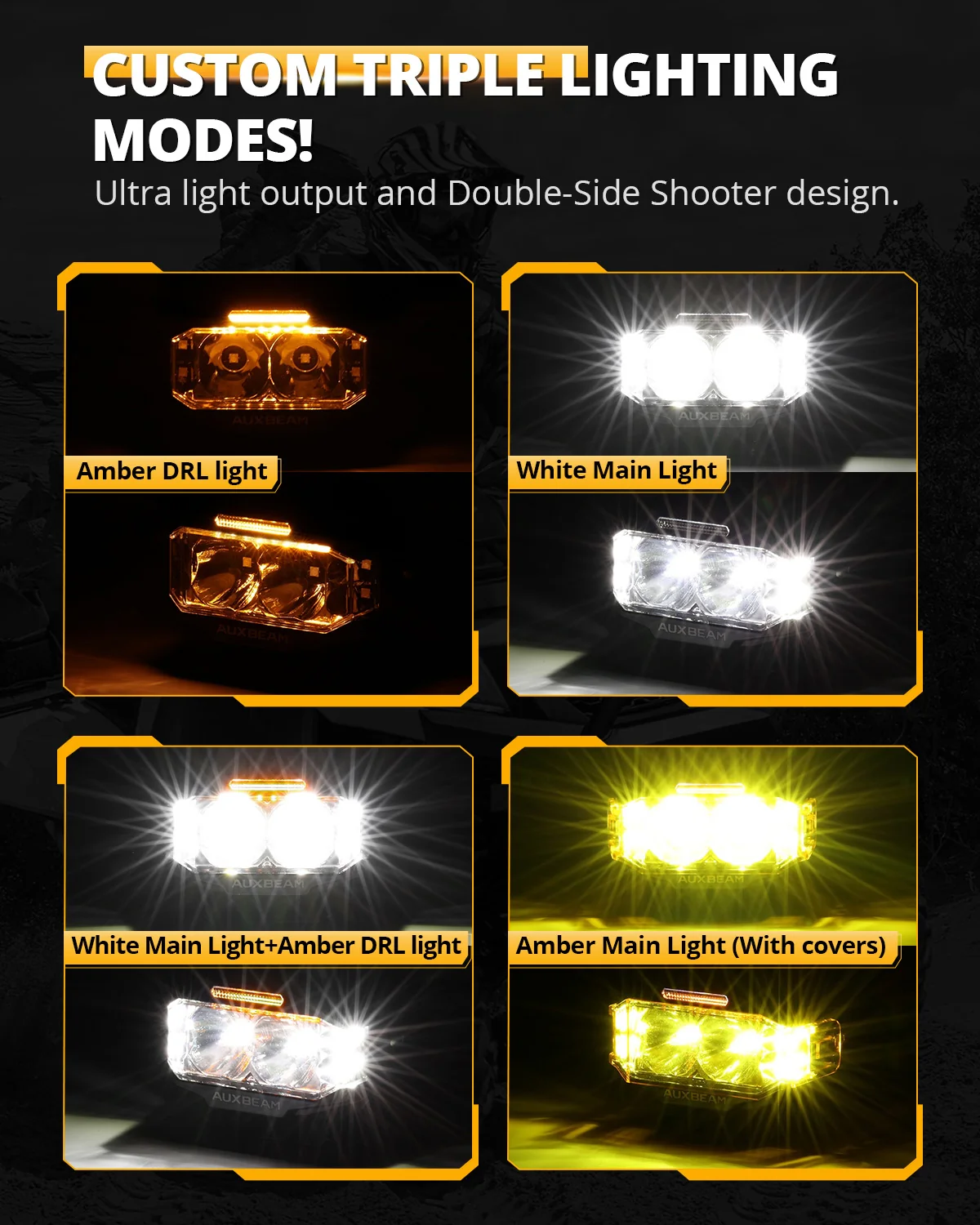

3 Lighting Modes for All-Day Visibility
Multiple lighting functions designed for different driving conditions:
- Main Light – Front spot beam + side shooter lighting for wider and farther visibility
- Amber DRL – Daytime running light for increased road presence and safety
- Combined Mode – Main light + Amber DRL for maximum visibility
Easy Plug & Play Installation
Includes a complete DT connector wiring harness kit for quick installation without complicated wiring.
Wide Vehicle Compatibility
Compatible with most 10–24V DC systems, including:
- Trucks
- Jeep
- Boats
- Trailers
- ATV / Off-road Vehicles
- 4×4
- SUV
- Motorcycles
- Construction & Heavy Equipment
- Agricultural Vehicles
Specifications
- Size: 4 Inch
- LED Configuration (Each): P8 5W × 6 + 3030 SMD 6W
- Power: 72W per Set
(Spot Light 30W + Amber DRL 6W × 2) - Brightness: 6,960LM Total
(Main Light 6,000LM + Amber DRL 960LM) - Beam Pattern: Spot Beam + Double Side Shooter

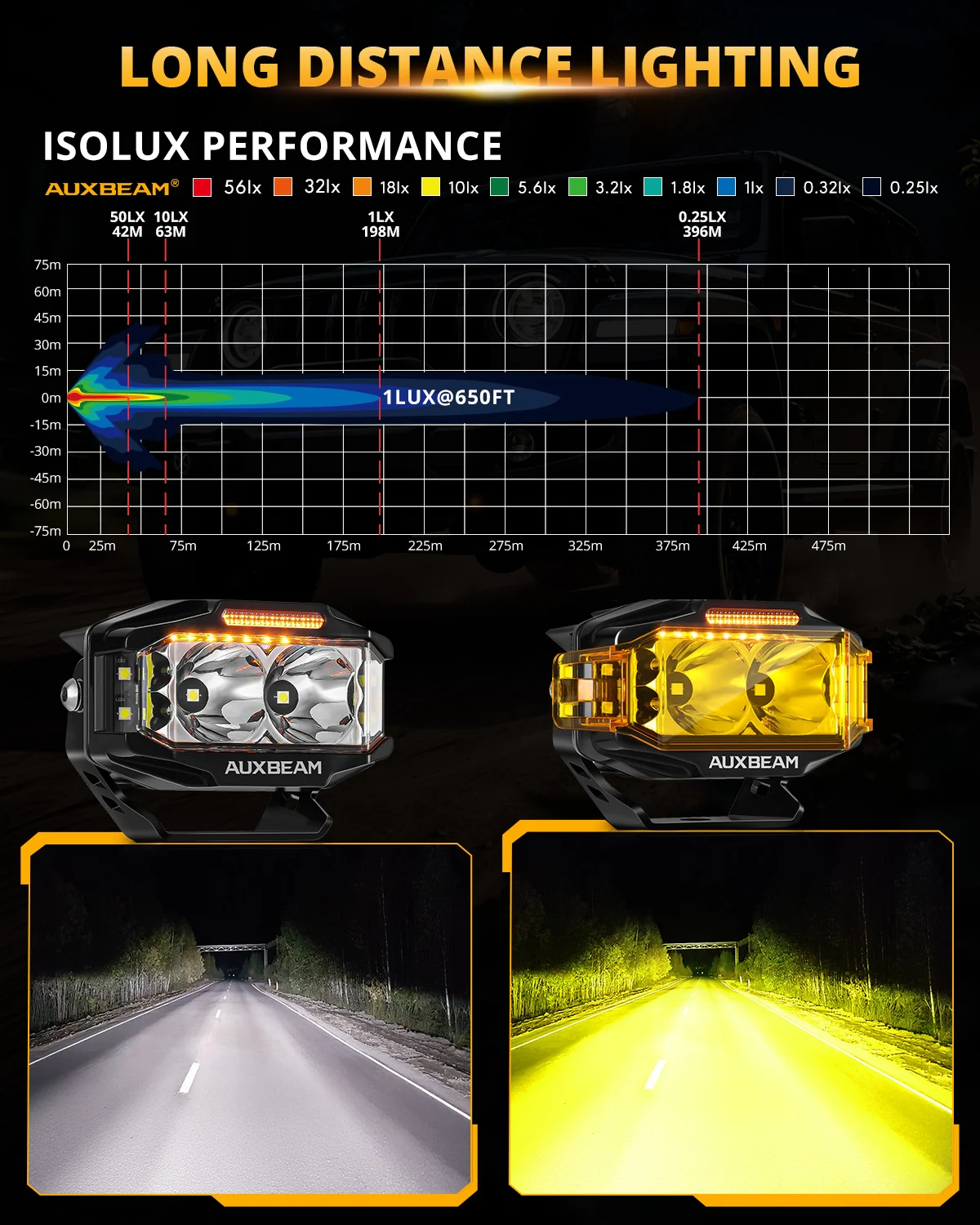

- Lighting Distance: 1lux @ 198m
- Color Temperature: 6500K White / 3000K Amber
- Light Color: White + Amber DRL
- EMC/EMI Protection: Yes
- Housing Material: Aluminum Alloy
- Lens Material: PC
- Waterproof Rating: IP68
- Mounting Type: Universal (M10 Screw Mount)
- Operating Voltage: 10V–30V
(Included relay harness supports 12V only; replaceable for 24V systems) - Housing Color: Black
- Lifespan: 50,000+ Hours

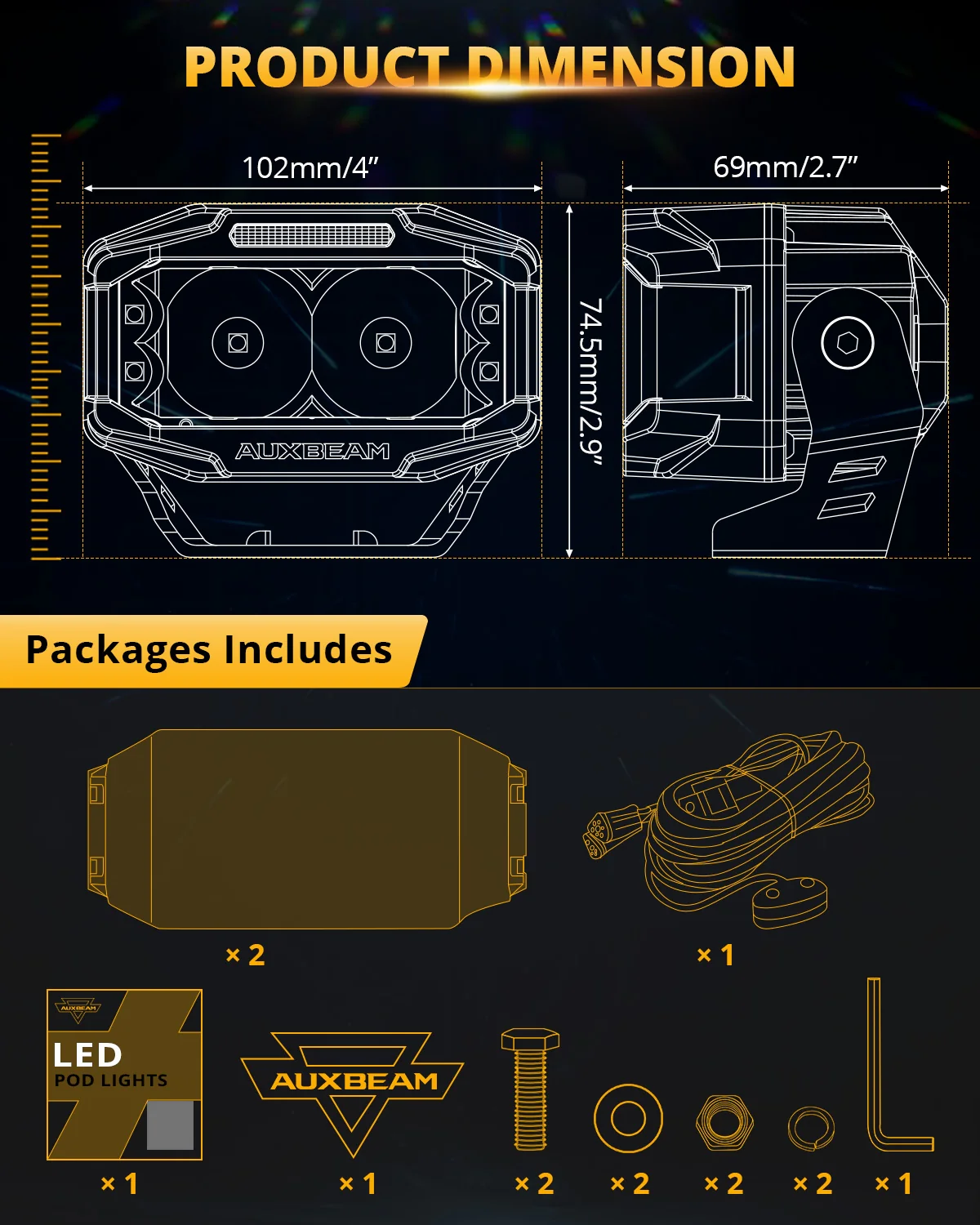

Package Includes
- 2 × LED Pod Lights (With DT Plug)
- 1 × Wiring Harness (With DT Plug)
- 1 × Mounting Hardware Kit
